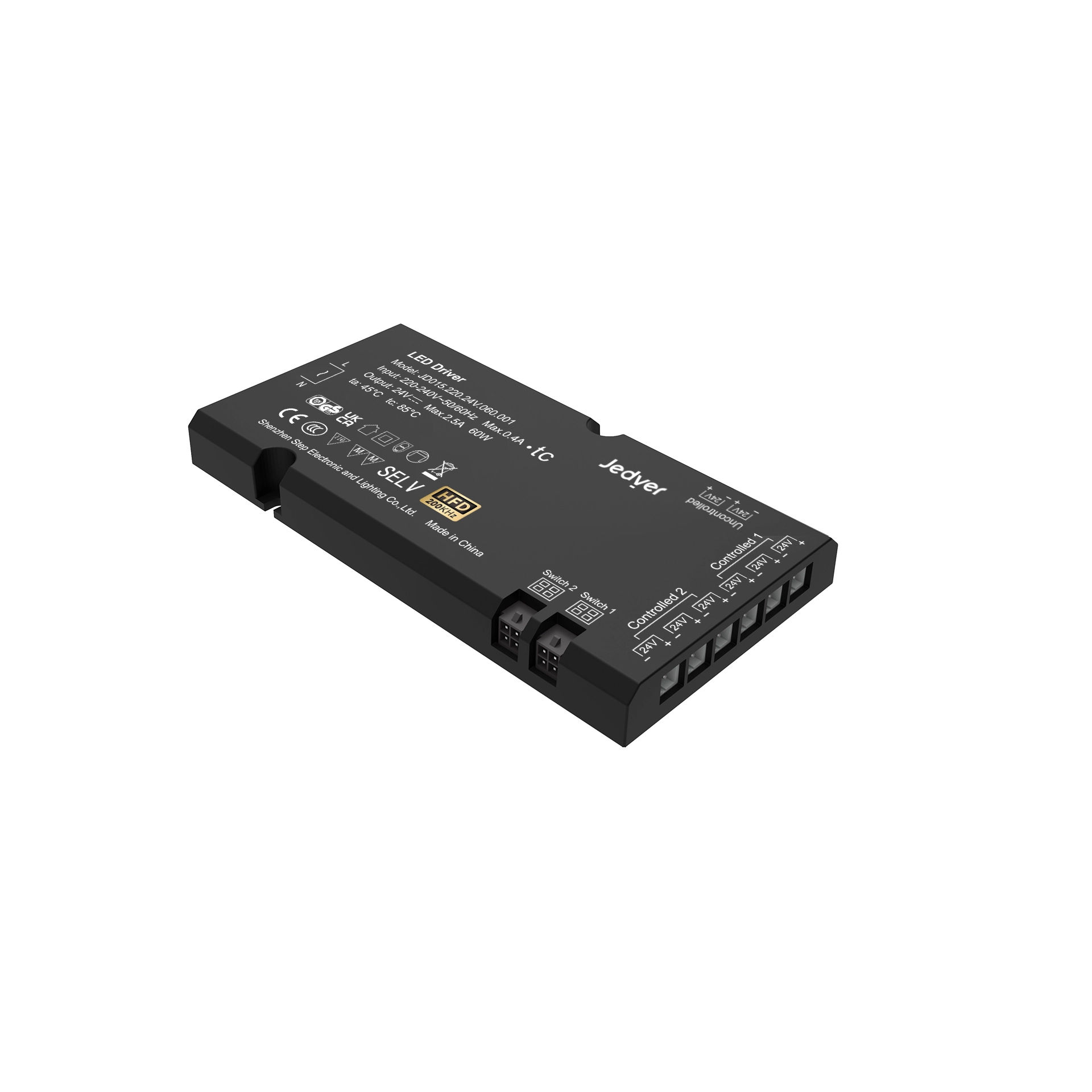

Integrated LED Driver, 15mm, 220~240V, 60W, 24V

JD057.220. 24V.060.005

DRIVER

24V

Extremely flat 15 mm

Mains voltage	220 – 240 V
Mains frequency	50 – 60 Hz
Material / Colour	plastic / black
Driver configuration	integrated
Degree of protection	IP20
Output voltage	24 V DC
Lifetime	30.000h
Installation	screw fixing
Output power	60 W
Standby power consumption	0.25 W
Power factor	≥ 0.95
Dim (L x W x H)	147 x 75 x 15 mm
Total efficiency	91 %
Version	with overload protection (OVP/OCP/SCP/OTP)
Scope of delivery	1 driver incl. fixings

Important info:

Ambient temperature - 20°C to + 45°C. Ensure sufficient air supply and circulation at the installation location.

Integrated drivers only can control monochrome light.

The voltage drops if the cable length is too long and the LEDs no longer shine brightly. Therefore, please note maximum cable length from driver to light of 6 m.

Drivers JD052.220.24V.040.005, JD057.220.24V.060.005, JD058.220.24V.100.005 and JD059.220.24V.150.005 feature 6 controlled ports and 2 ports uncontrolled. The uncontrolled ports supply continuous current, even when the driver is switched off. Important for the linear lights with integrated switching function (JL013, JL007, JL008).

Inquiry

Write a Review

POWER SUPPLY

Driver

	Output power	Standby power consumption	Power factor	Tota efficiency	Connected output ports	Switch connections	Dimensions (L x W x H)	Article number
	W	W		%			mm
JD054	20	0.20	≥ 0.95	86	4+2 socket 2-pin, 24 V	1x socket 4-pin	147 x 75 x 15	JD054.220.24V.020.005
JD052	40	0.20	≥ 0.95	89	6+2 socket 2-pin, 24 V	2x socket 4-pin	202 x 75 x 15	JD052.220.24V.020.005
JD057	60	0.25	≥ 0.95	91	6+2 socket 2-pin, 24 V	2x socket 4-pin	147 x 75 x 15	JD057.220.24V.020.005
JD058	100	0.25	≥ 0.95	92.5	6+2 socket 2-pin, 24 V	2x socket 4-pin	202 x 75 x 15	JD058.220.24V.020.005
JD059	150	0.25	≥ 0.95	93.5	6+2 socket 2-pin, 24 V	2x socket 4-pin	230 x 75 x 15	JD059.220.24V.020.005
