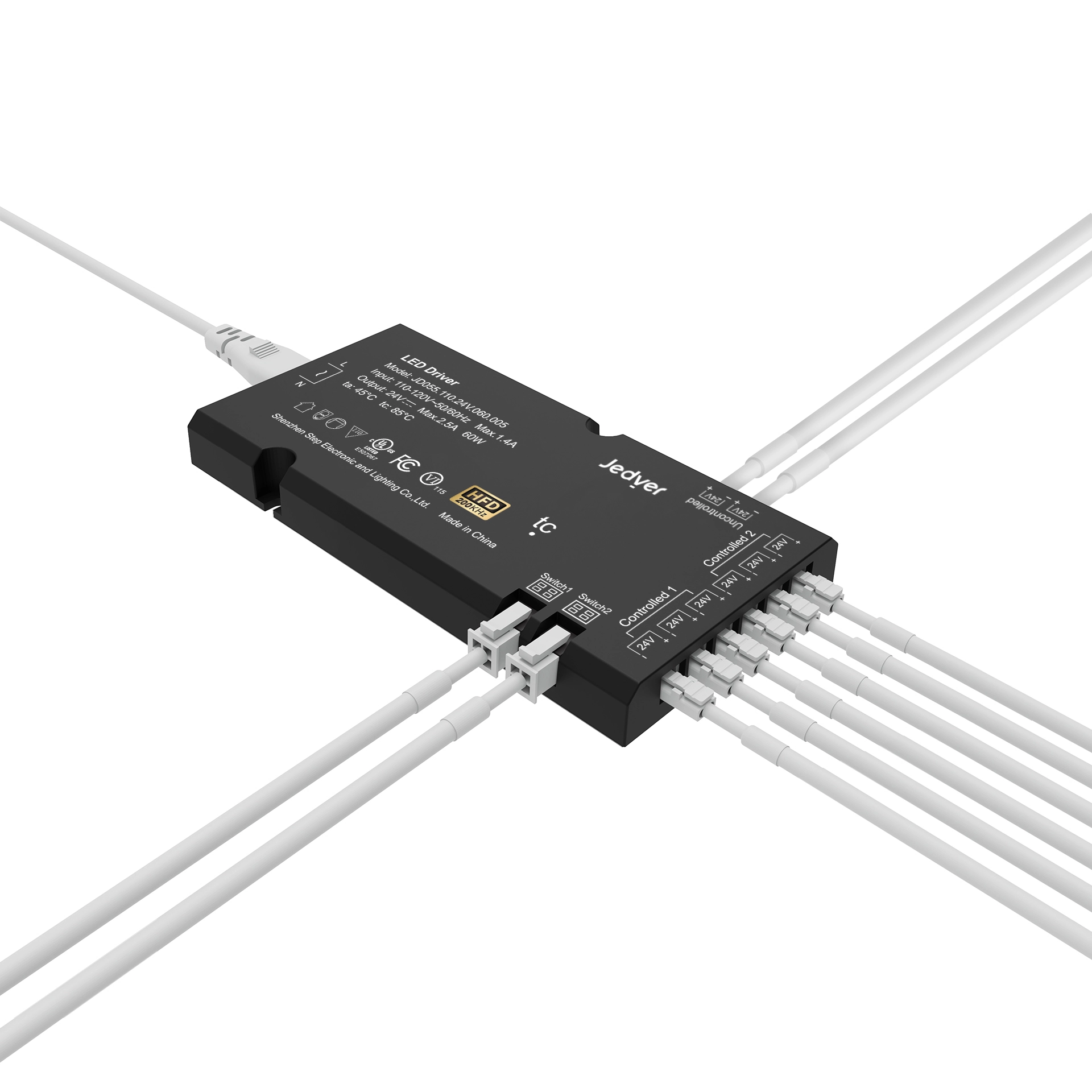

Voxaura Integrated LED Driver, 15mm, 220~240V, 60W, 24V

100.10.01.006

DRIVER

24V

Extremely flat 15 mm

Mains voltage	220 – 240 V
Mains frequency	50 – 60 Hz
Material / Colour	plastic / black
Driver configuration	integrated
Degree of protection	IP20
Output voltage	24 V DC
Lifetime	30.000h
Installation	screw fixing
Output power	60 W
Standby power consumption	0.25 W
Power factor	≥ 0.95
Dim (L x W x H)	147 x 75 x 15 mm
Total efficiency	91 %
Version	with overload protection (OVP/OCP/SCP/OTP)
Scope of delivery	1 driver incl. fixings

Important info:

Ambient temperature - 20°C to + 45°C. Ensure sufficient air supply and circulation at the installation location.

Integrated drivers only can control monochrome light.

The voltage drops if the cable length is too long and the LEDs no longer shine brightly. Therefore, please note maximum cable length from driver to light of 6 m.

Inquiry

Write a Review

POWER SUPPLY

Driver

Output power	Standby power consumption	Power factor	Tota efficiency	Connected output ports	Switch connections	Dimensions (L x W x H)	Article number
W	W		%			mm
25	0.20	≥ 0.95	87	4+2 socket 2-pin, 24 V	1x socket 4-pin	147 x 75 x 15	100.10.01.004
40	0.20	≥ 0.95	88	6+2 socket 2-pin, 24 V	2x socket 4-pin	147 x 75 x 15	100.10.01.005
60	0.25	≥ 0.95	91	6+2 socket 2-pin, 24 V	2x socket 4-pin	147 x 75 x 15	100.10.01.006
100	0.25	≥ 0.95	92	6+2 socket 2-pin, 24 V	2x socket 4-pin	202 x 75 x 15	100.10.01.007
150	0.25	≥ 0.95	92	6+2 socket 2-pin, 24 V	2x socket 4-pin	230 x 75 x 15	100.10.01.008
