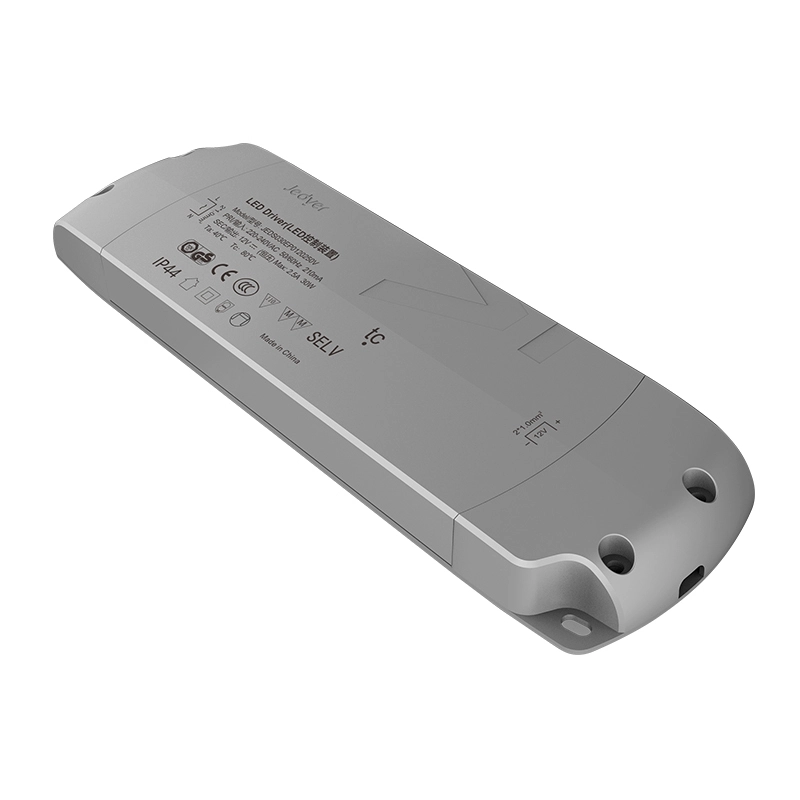

Driver IP44, 17mm, 220~240V, 30W, Constant Voltage 24 V
JD003.220.24V.030.001
DRIVER IP44
24V
- Extremely flat 17 mm
| Mains voltage |
220 – 240 V |
| Mains frequency |
50 – 60 Hz |
| Material / Colour | plastic / black |
| Driver configuration | integrated |
| Degree of protection |
IP44 |
| Output voltage | 24 V DC |
| Lifetime |
20.000h |
| Installation |
self-adhesive or screw fixing |
| Output power | 30 W |
| Standby power consumption | 0.35 W |
| Dim (L x W x H) | 148 x 52 x 17 mm |
| Power factor | ≥ 0.9 |
| Total efficiency | 88 % |
| Version |
with overload protection (OVP/OCP/SCP/OTP) |
| Scope of delivery |
1 driver incl. tape |
Important info:
- Thanks to their increased IP protection rating (IP44), IP44 drivers are suitable for use in wet rooms such as bathrooms.
- Ambient temperature -20°C to + 45°C. Ensure sufficient air supply and circulation at the installation location.
- Integrated drivers only can control monochrome light.
- IP44 drivers can only control lights in conjunction with bathroom control modules.
- The voltage drops if the cable length is too long and the LEDs no longer shine brightly. Therefore, please note maximum cable length from driver to light of 6 m.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
POWER SUPPLY
Driver IP44
| Output power | Current carrying capacity | Standby power consumption | Power factor | Tota efficiency | Connected output ports |
Dimensions (L x W x H) |
Article number |
| W | A (per port) | W | % | mm | |||
| 30 | 5 | 0.35 | ≥ 0.90 | 88 | 1 terminal 2-pin, 24V, 1.25 A | 148 x 52 x 17 | JD003.220.24V.030.001 |
| 40 | 5 | 0.35 | ≥ 0.90 | 88 | 1 terminal 2-pin, 24V, 1.67 A | 180 x 57 x 17 | JD003.220.24V.040.001 |
| 48 | 5 | 0.35 | ≥ 0.90 | 88 | 1 terminal 2-pin, 24V, 2 A | 247 x 57 x 17 | JD003.220.24V.048.001 |
| 60 | 5 | 0.35 | ≥ 0.90 | 88 | 1 terminal 2-pin, 24V, 2.5 A | 247 x 57 x 17 | JD003.220.24V.060.001 |
Documentation
More Information
Product features
- Connected output port: 1 terminal 2-pin
