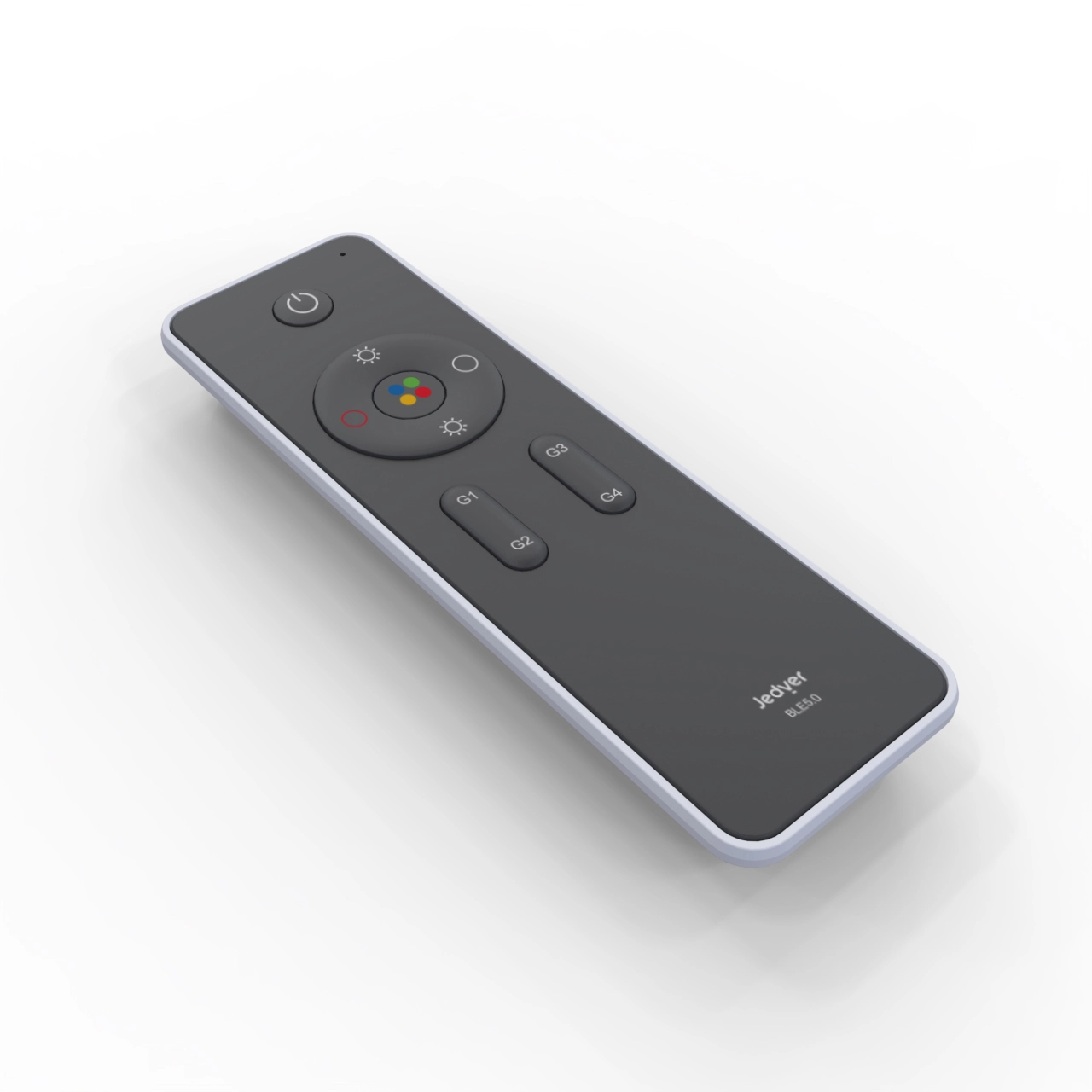

Radio Remote Control, JEDVER Connect Mesh
REMOTE CONTROL
3V
wireless, battery-powered
Free connect mesh app for JEDVER Apple iOS® and Android™
- One remote control for all applications: Monochrome lights, multi-white lights, RGB lights
| Controller method | remote control |
| Switching function |
soft on/off dimming brightness stepless tune of colour temperature (CCT) adjust RGB colours |
| Memory function |
yes (also in currentless condition) |
| Signal range | 6.0 m |
| Network signal | bluetooth |
| Area of application | for controlling components at the JEDVER onnect mesh 6-way controller |
| Material / colour | plastic / black |
|
Dim. (L x W x H) |
130 x 40 x 13 mm |
| Power consumption | 0.015 W |
| Embedded battery |
replaceable |
| Battery |
1x CR2450, 3V DC |
| Battery lifetime |
2 years |
| Degree of protection | IP20 |
| Scope of delivery | 1 remote control |
Important info:
- Remote control can only be operated in conjunction with smart drivers / control unit. Compatible with all control units.
- SIGNAL RANGE:
Direct range from remote control to driver / control unit: 6 m. However, the signal is passed from device to device within the Bluetooth mesh and thereby increases the mesh signal range.
| Control method | Switching function | Controlled colour systems | Article number | |
| remote control |
soft on/off dimming brightness stepless tune of colour temperature (CCT) adjust RGB colours |
multiwhite RGB RGB-multiwhite |
IS008.003.D.B.001 |
4 channels to control different lights:
- soft on/off
- dimming brightness
- stepless tune of colour temperature (CCT)
- adjust RGB colours
MEMORY FUNCTION:
When the light is switched on, it has the same setting as when it was last switched of.
