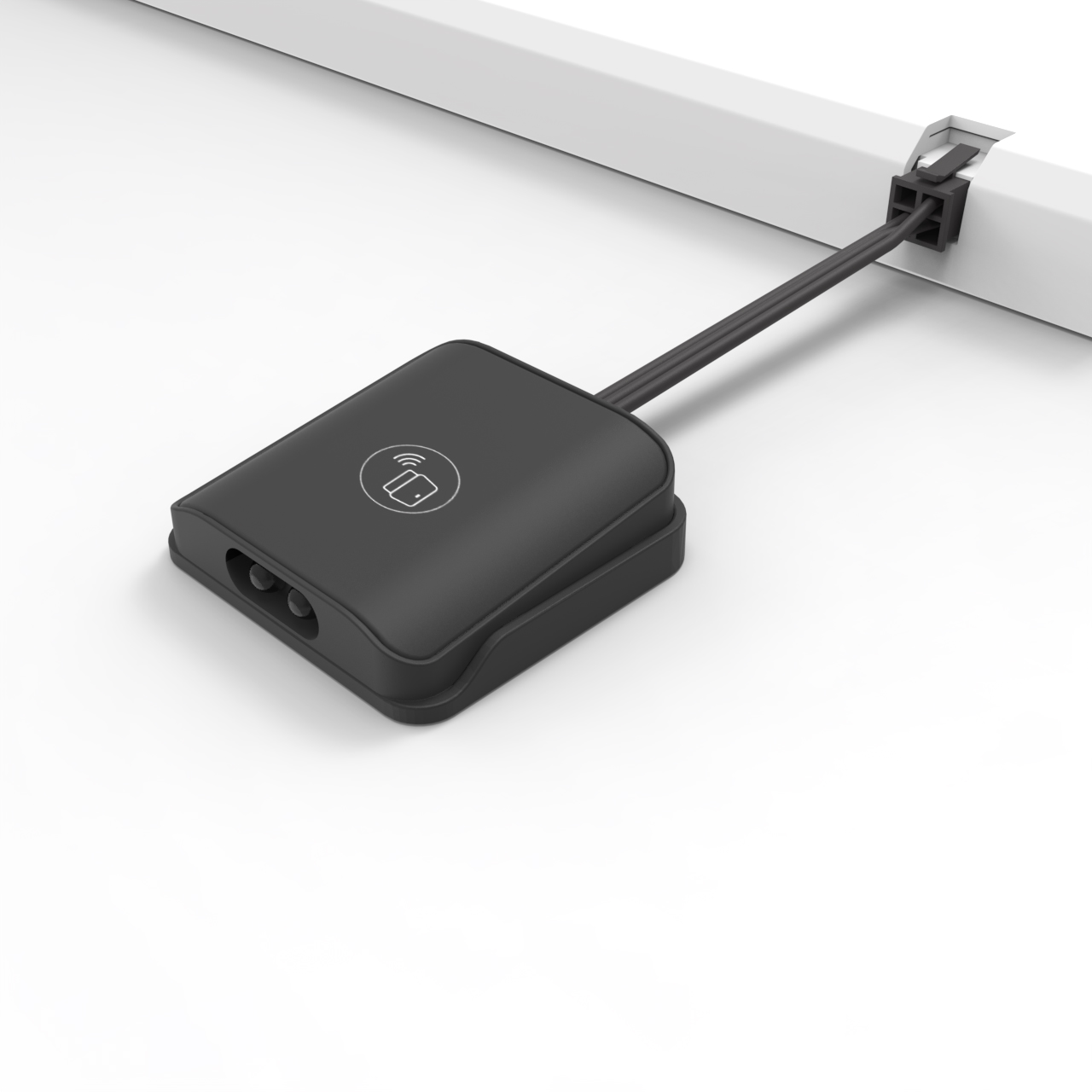

IR Door Wired Sensor Switch, Soft On/Off Switching

JS023.S.012.R.002

WIRED SENSOR SWITCH

12 / 24 V

wired

Controller method	control by opening / closing door
Switching function	soft on/off
Memory function	-
Sensor range	0
Cable lenght	2.0 m
Area of application	for mounting under cabinet or shelf
Material / colour	plastic / black
Dim. (L x W x H)	28 x 28 x 9 mm
Power consumption	0.1 W
Degree of protection	IP20
Installation	screw fixing, surface mounting
Scope of delivery	1 switch incl. connecting cable 2 m and mounting base

Important info

Wired sensor switches can only be operated with integrated drivers. Compatible to all integrated drivers.
PIR / MICROWAVE SENSOR: Both PIR and microwave sensors are designed to detect the movement of warm objects (such as people) that move through the sensor‘s field of view. The difference is that microwave sensors can also detect movement through glass or other thin materials and can therefore be concealed.

	Control method	Switching function	Detection range	Memory function	Article number
			mm
1	control by swiping	on / off soft, dimming	0-90	yes	JS024.S.012.R.001
2	control by opening / closing door	on / off soft	0	no	JS023.S.012.R.001
3	control by touching	on / off soft, dimming	0	yes	JS022.S.012.T.001
4	control by motion detection	on / off soft,	0-3000	30 sec run-on time	JS025.S.012.R.001
5	control by motion detection	on / off soft	0-3000	30 sec run-on time	JS026.S.012.P.001

Documentation

Product Manual

Product Specification

2D Design

3D Design

Certification

Installation Vedio

More Information

Product features

Inside a cabinet, light turns on/off automatically by opening/closing the door.

MEMORY FUNCTION:

When the light is switched on, it has the same setting as when it was last switched of.

MICROWAVE SENSOR:

can detect movement also through thin materials and so can be concealed.

Order info

Integrated driver
