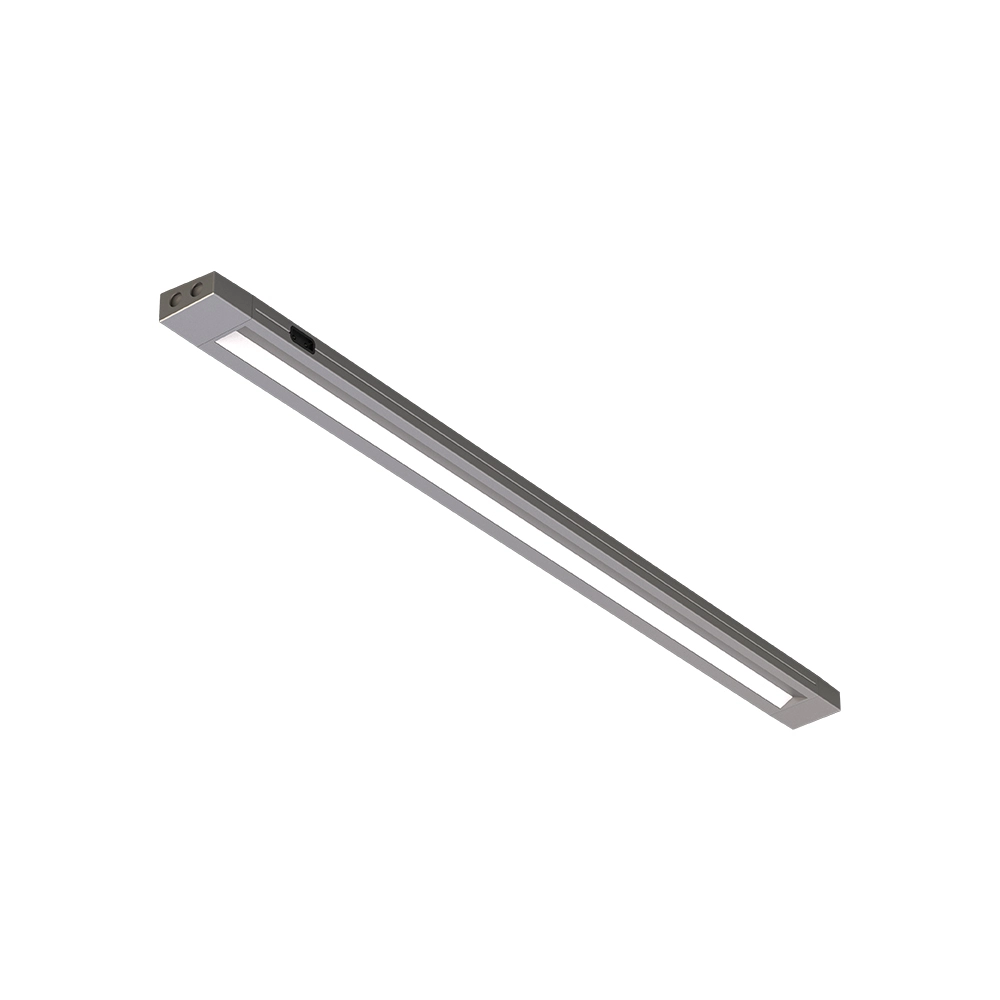

LINEAR LIGHT, 24V, Monochrome, Drawer Linear Light
LINEAR LIGHT
24V
monochrome, drawer linear light
| Material | aluminum |
| Surface finish |
grey |
| Kind of LED | SMD |
| Dimmable |
no |
| Degree of protection | IP20 |
| Lifetime L80/B10 | > 50,000 h |
|
Lifetime L70/B50 |
> 80,000 h |
| Installation | surface mounting |
| Scope of delivery |
1 linear light incl. connecting cable 2 m |
Important info
JL007 features an integrated switch that turns the light on when movement is detected. To ensure that the switch can also switch the light on when the driver is switched off, the light must be connected to an uncontrolled output port of the driver.
|
Number of LEDs |
Wattage |
Luminous flux |
Lumen efficacy |
Colour Rendering Index CRI |
Colour temperature |
Colour system |
Energy efficiency class |
Customized size |
Dimensions (L x W x H) |
Article number |
|
|
LEDs/m |
W/m |
lm/m |
lm/W |
Ra |
R9 |
K |
|
EEI |
|
mm |
|
| 168 | 5 | 300 | 60 | 93 | ＞50 | 3000 | monochrome |
cut-to-size one side |
1000 x 20 x 10 | JL007.S.024Y.I.001 | |
▪ HIGH CRI 93
▪ HIGHEST LUMINOUS FLUX
▪ CUT-TO-SIZE
▪ PLUG AND PLAY SYSTEM
