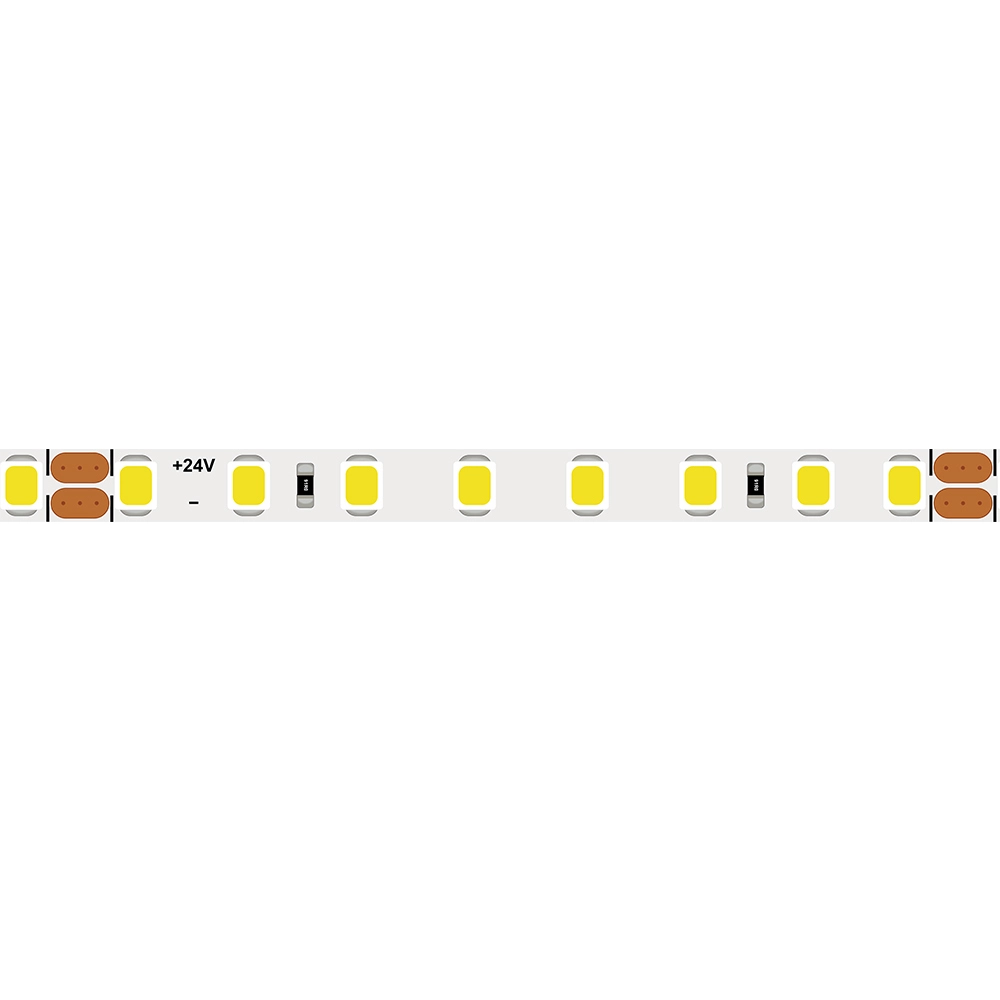

SMD LED-Ribbons, 24V, Monochrome, 5mm, 5W/m
JR005 5W/m
SMD LED-RIBBONS
24V
monochrome, 5mm
| Material | plastic |
| Surface finish |
white |
| Width |
5 mm |
| Height | 1,3 mm |
| Dimmable |
yes |
| Degree of protection | IP20 |
| Lifetime L80/B10 | > 50,000 h |
|
Lifetime L70/B50 |
> 80,000 h |
| Installation | self-adhesive |
| Scope of delivery |
1 roll (5 m) incl. connecting cable 2 m |
Order info
- Additional connecting accessories need to be ordered separately
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
|
Number of LEDs |
Wattage |
Luminous flux |
Lumen efficacy |
Colour Rendering Index CRI |
Colour temperature |
Energy efficiency class |
Max. ribbon length(visual) |
Section length |
Contact surface length |
Article number |
|
|
LEDs/m |
W/m |
lm/m |
lm/W |
Ra | R9 |
K |
EEI | m | mm | mm | |
| 128 | 5 | 950 | 190 | 93 | ＞50 | 2700 | 8.0 | 62.5 | 4.0 | JR005.024.05SV.128.001 | |
| 5 | 950 | 190 | 93 | ＞50 |
3000 | 8.0 | 62.5 | 4.0 | JR005.024.05SV.128.002 | ||
| 5 | 975 | 195 | 93 | ＞50 |
4000 | 8.0 | 62.5 | 4.0 | JR005.024.05SV.128.003 |
||
| 5 | 1000 | 200 | 93 | ＞50 |
5000 | 8.0 | 62.5 | 4.0 | JR005.024.05SV.128.004 |
||
Documentation
More Information
Product features
- HIGH LUMINOUS FLUX
- HIGH CRI 93
Order info
