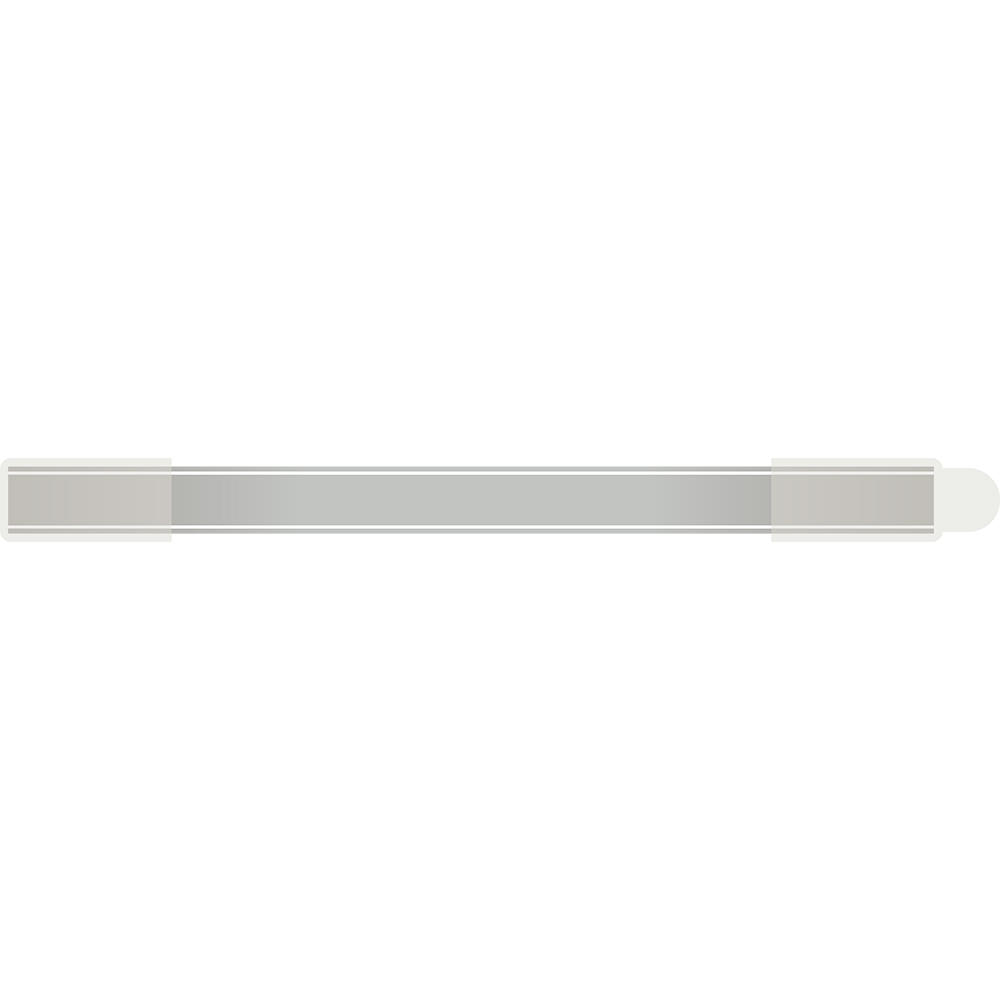

SILICONE LED-RIBBONS, 24V, Monochrome / Multiwhite, 4mm
SMD LED-RIBBONS
24V
monochrome / multiwhite, 4mm
| Material | silicone |
| Surface finish |
white |

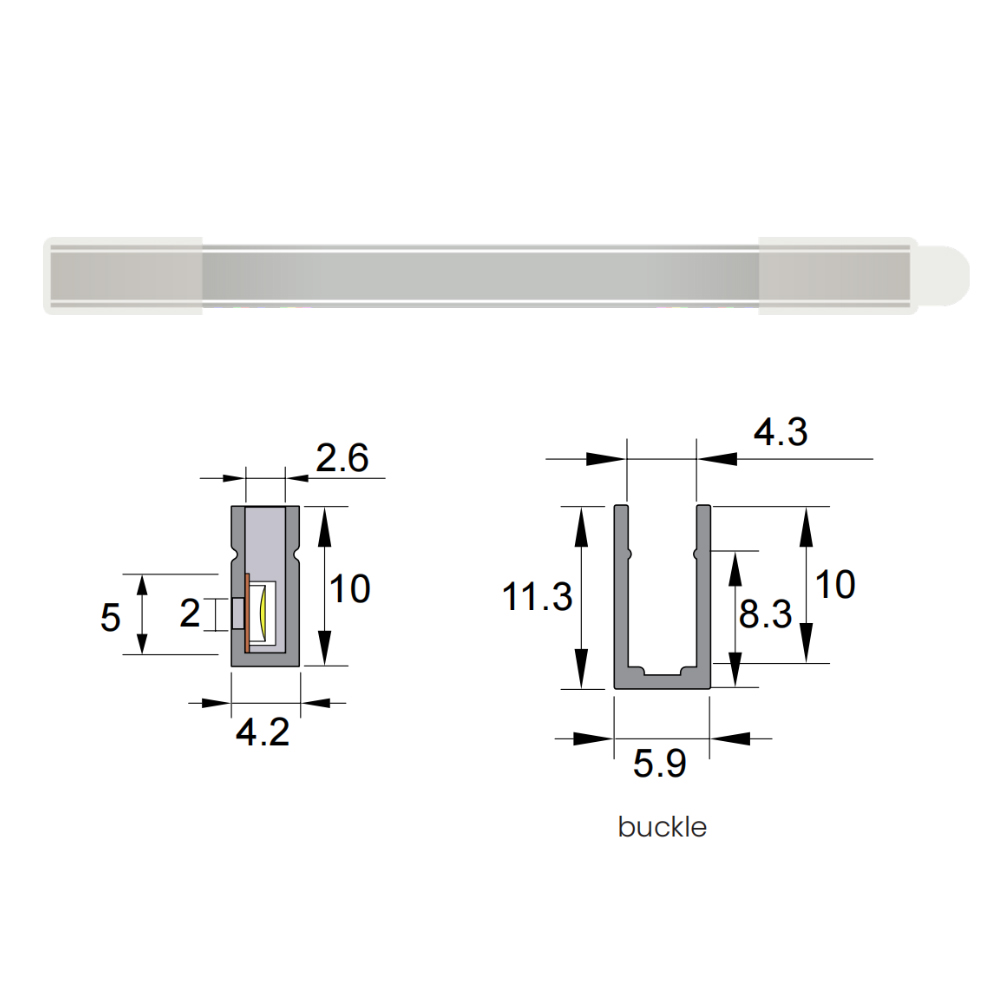

| Width |
4 mm（5 mm PCB） |
| Height | 10 mm |
| Dimmable |
yes |
| Degree of protection | IP65 |
| Lifetime L80/B10 | > 50,000 h |
|
Lifetime L70/B50 |
> 80,000 h |
| Installation | profile fixing |
| Scope of delivery |
1 roll (5 / 15 m) incl. connecting cable 2 m |
Important info
Thanks to their increased IP protection rating (IP65), silicone LED-ribbons are also suitable for use in wet rooms such as bathrooms. Please note that an appropriate driver must be used for wet rooms as well.
Silicone LED-ribbons are characterized by light emission even on the small side of the ribbon, without visible LED dots.
Due to the material properties of silicone, silicone LED-ribbons can also be installed in waves and circles,whereby a radius of at least 30 mm must be observed.
Multiwhite LED-ribbon can only be operated with smart-drivers.
The specified lifetime refers to operation at room temperature (up to 25°C). Please note that a higher ambient temperature will shorten the lifetime.
|
Number of LEDs |
Wattage |
Luminous flux |
Lumen efficacy |
Colour Rendering Index CRI |
Colour temperature |
Energy efficiency class |
Max. ribbon length(visual) |
Section length |
Contact surface length |
Article number |
|
|
LEDs/m |
W/m |
lm/m |
lm/W |
Ra | R9 |
K |
EEI | m | mm | mm | |
| 128 | 5 | 250 | 40 | 93 | ＞50 | 2700 | 8.0 | 62.5 | 4.0 | JR030.024.05HV.128.001 | |
| 5 | 250 | 40 | 93 | ＞50 |
3000 | 8.0 | 62.5 | 4.0 | JR030.024.05HV.128.002 | ||
| 5 | 250 | 40 | 93 | ＞50 |
4000 | 8.0 | 62.5 | 4.0 | JR030.024.05HV.128.003 | ||
| 5 | 250 | 40 | 93 | ＞50 |
5000 | 8.0 | 62.5 | 4.0 | JR030.024.05HV.128.004 |
||
| 120 | 5 | 200 | 40 | 93 | > 50 |
2700-500 |
8.0 | 50.0 | 4.0 | JR030.024.05HV.120.001 | |
▪ HIGH CRI 93
▪ HIGH LUMINOUS FLUX
▪ BEAM ANGLE 180°
